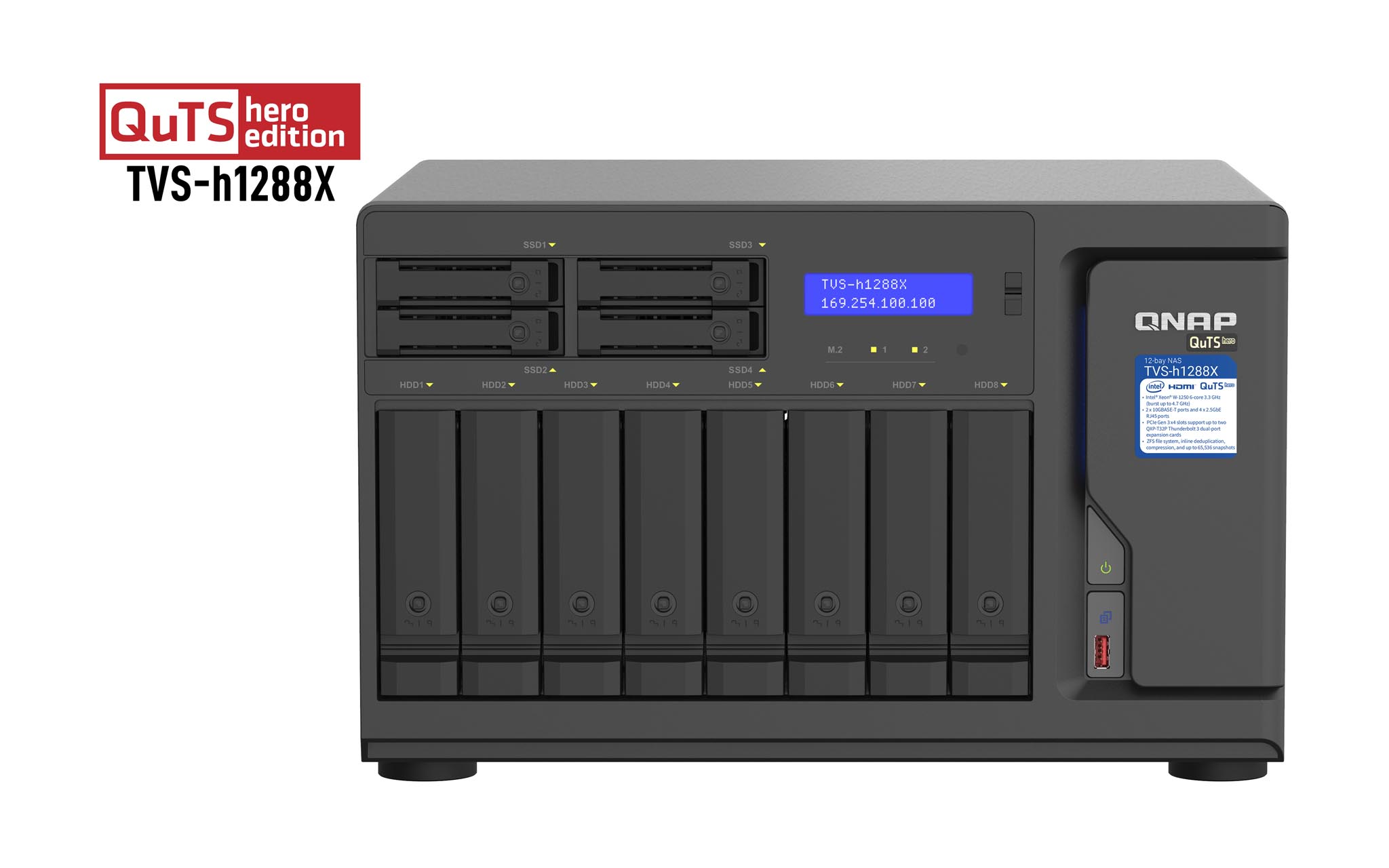

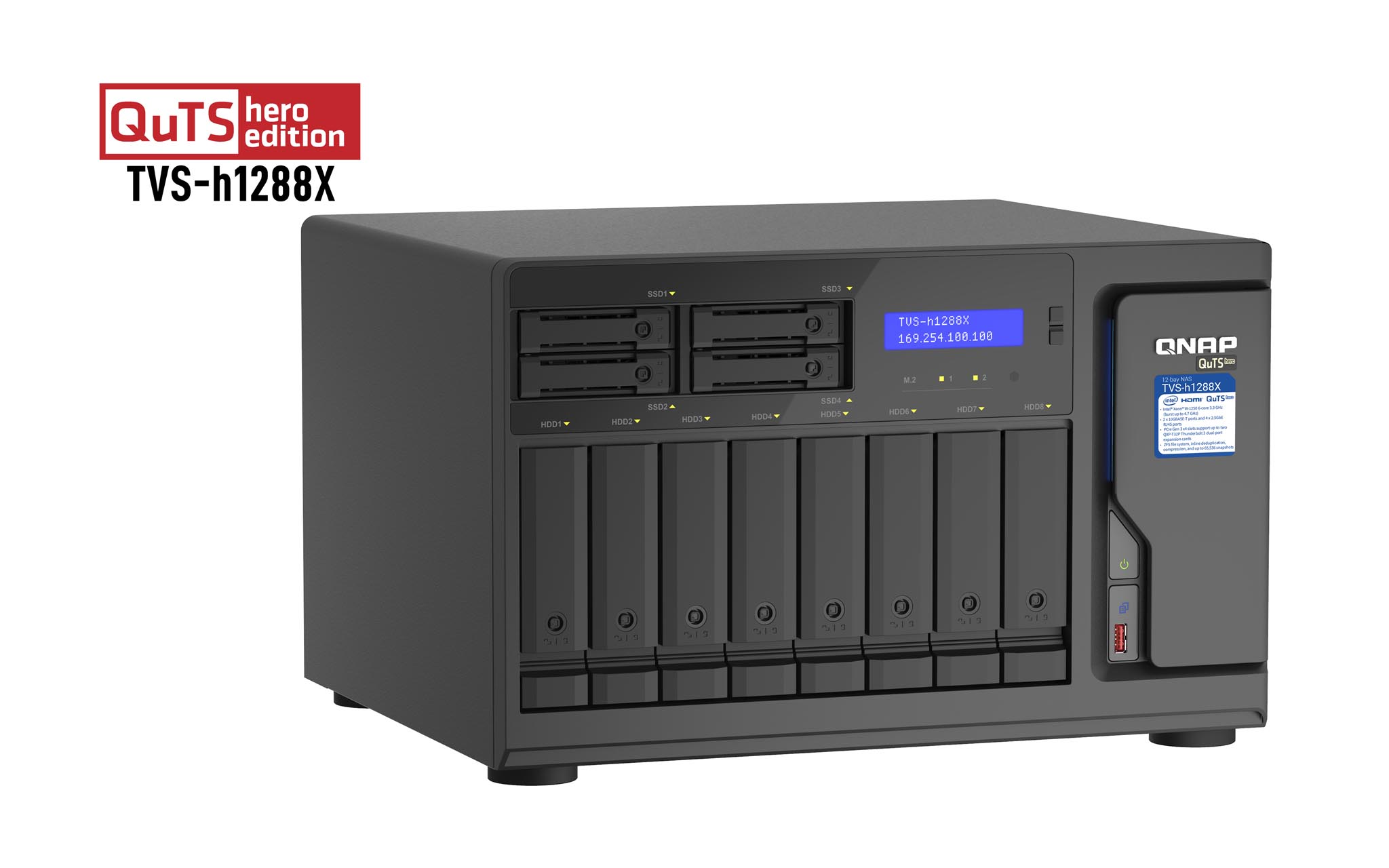

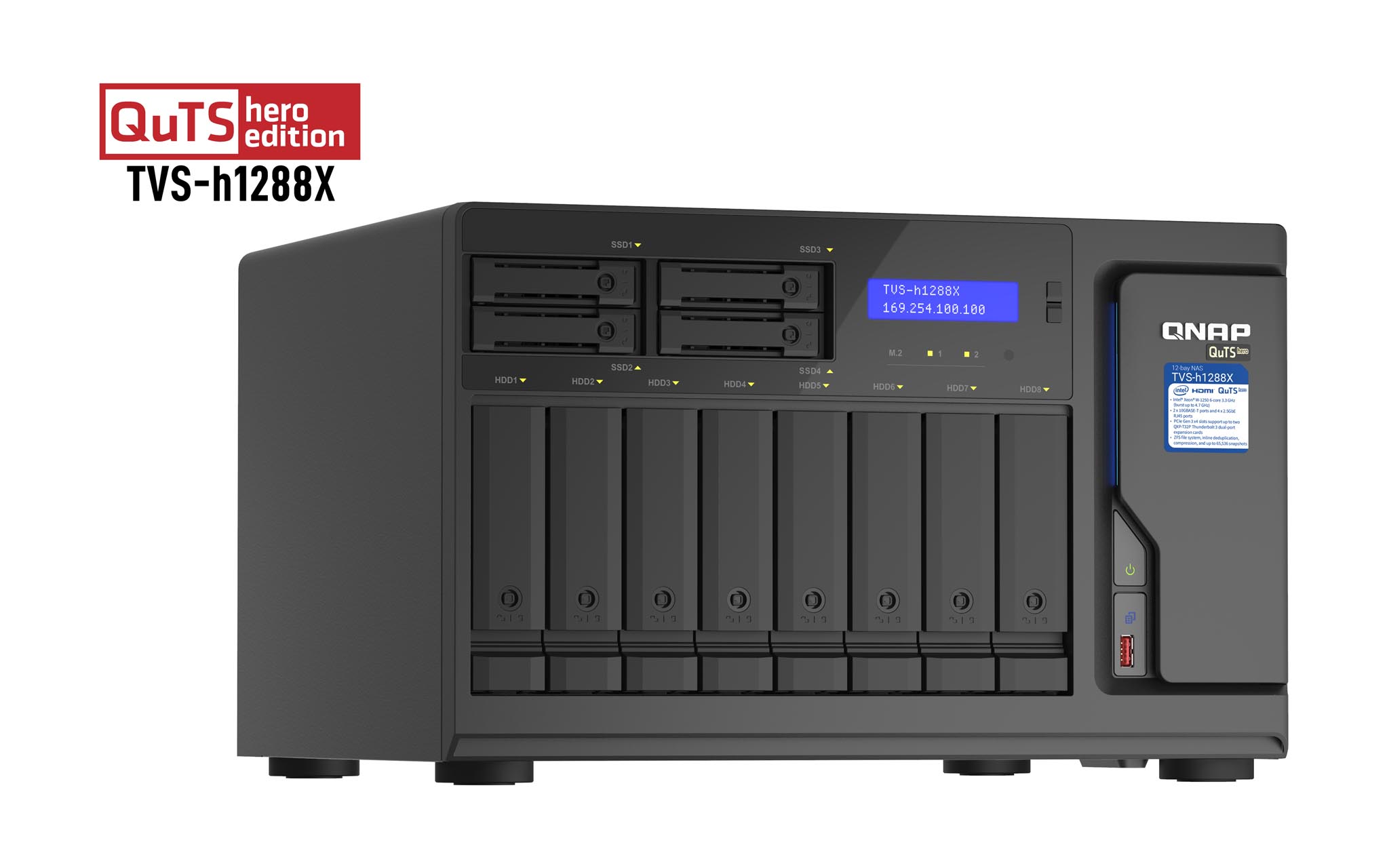

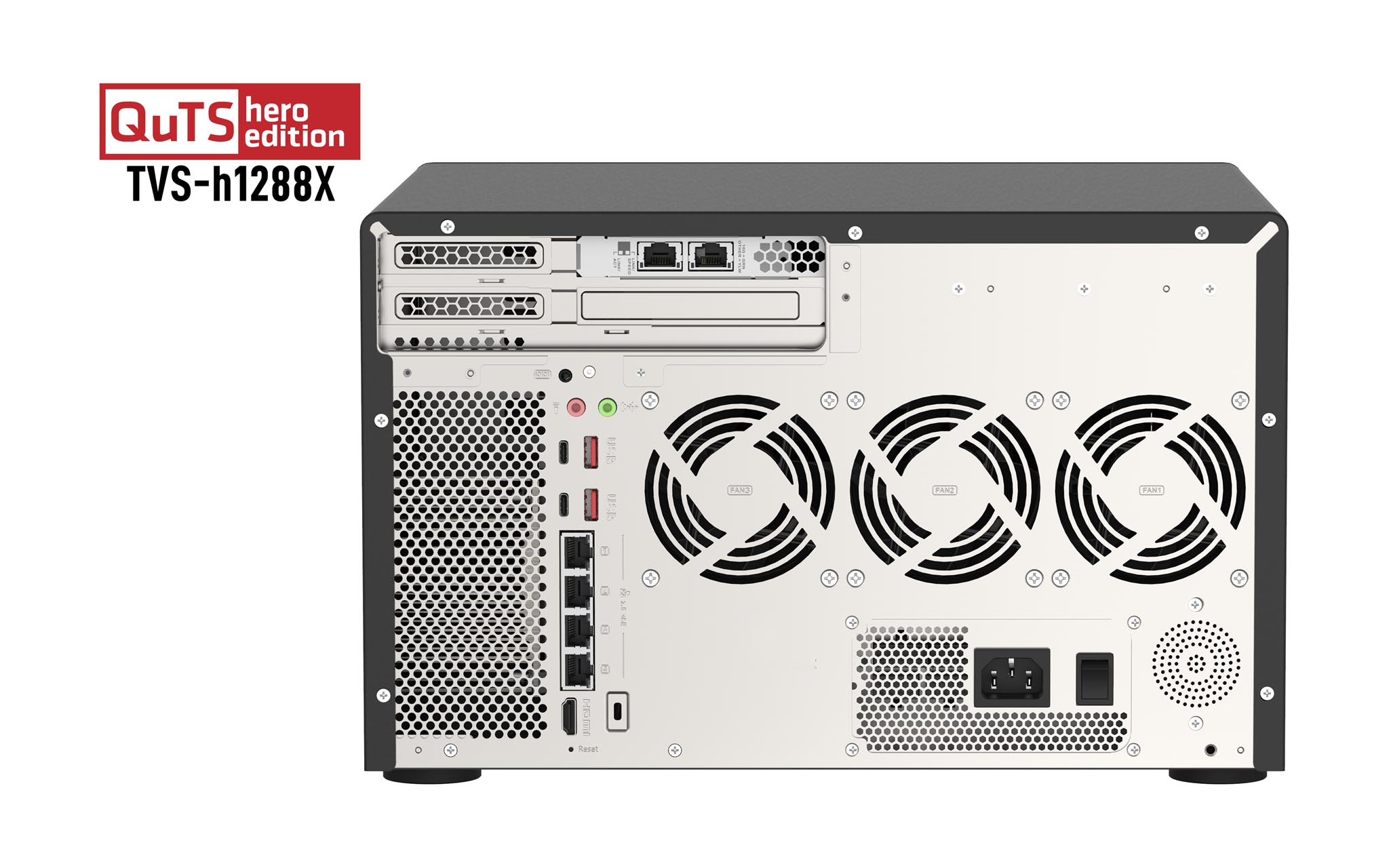

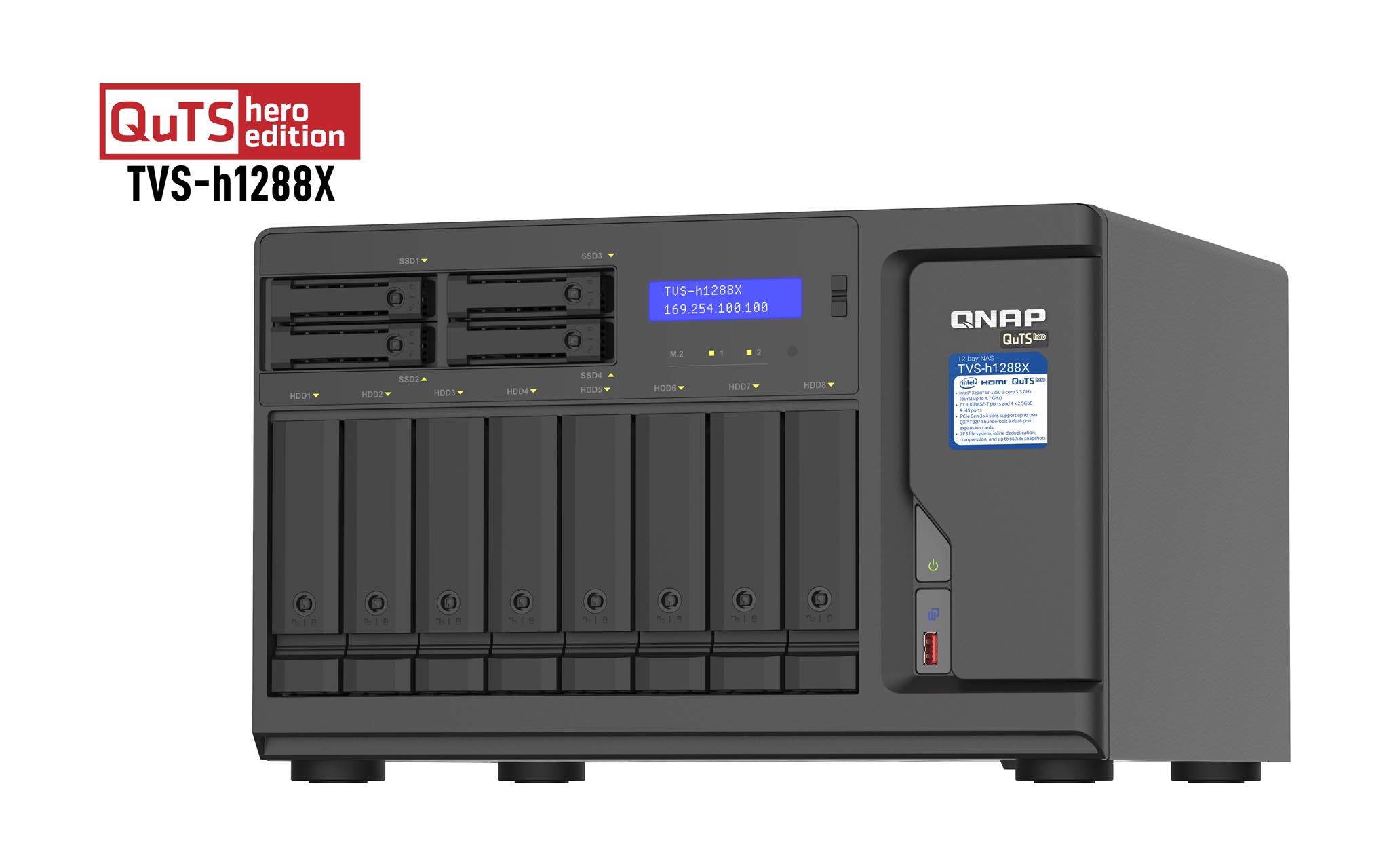

QNAP TVS-h1288X-W1250-16G

QNAP TVS-h1288X-W1250-16G

Intel® Xeon® W desktop QuTS hero NAS, ideal for high-speed media collaboration over Thunderbolt™ 3 and 10GbE virtual machine applications. Hàng chính hãng CO-CQ đầy đủ, Cam kết giá tốt nhất thị trường!

Call đ

QNAP TVS-h1288X-W1250-16G

THÔNG SỐ KỸ THUẬT TVS-h1288X-W1250-16G

CPU Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz)
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics P630
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 16 GB ECC UDIMM DDR4 (2 x 8 GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x Long-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4 (also support 10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter
10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/1G)
25 Gigabit Ethernet Port Optional via an adapter
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame
Thunderbolt Port Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter
PCIe Slot 3
Slot 1: PCIe Gen3 x8
Slot 2: PCIe Gen3 x4
Slot 3: PCIe Gen3 x4
*Slot 1 is preinstalled with a 2-port 10GbE network adapter.
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C
3 x Type-A
HDMI Output 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
Audio Input - (No longer available on units manufactured on or after 2021/1/1)
Audio Output - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)
Form Factor Tower
LED Indicators System status, LAN, USB, Disk 1~12, M.2 SSD 1~2
LCD Display/ Button
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 234.6 × 369.9 × 319.8 mm
Weight (Net) 11.27 kg
Weight (Gross) 14.95 kg
Operating temperature 0 - 40°C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W PSU, 100~240V
Power Consumption: HDD Sleep Mode 85.216 W
Power Consumption: Operating Mode, Typical 97.492 W
Tested with drives fully populated.
Fan System fan: 3 x 80mm, 12VDC
CPU fan: 2 x 97mm, 12VDC
Sound Level 26 db(A)
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000
