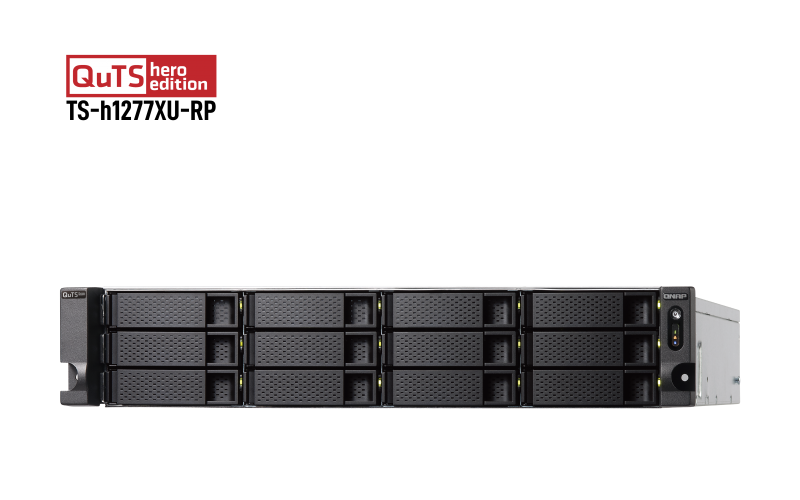

QNAP TS-h1277XU-RP-3700X-128G

QNAP TS-h1277XU-RP-3700X-128G

Powered by QuTS hero — a ZFS-based operating system with greater reliability and higher performance. Hàng chính hãng CO-CQ đầy đủ, Cam kết giá tốt nhất thị trường!

Call đ

QNAP TS-h1277XU-RP-3700X-128G

Thông số kỹ thuật TS-h1277XU-RP-3700X-128G

CPU AMD Ryzen™ 7 3700X 8-core/16-thread 3.6 GHz
processor, Turbo Core 4.4 GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 128 GB UDIMM DDR4 (4 x 32GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x Long-DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4**
*Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use.
***PCIe slot 4 is preinstalled with a 10GbE network adapter
USB 3.2 Gen 1 port 4
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 2U Rackmount
LED Indicators HDD 1-12, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 88.3 × 482 × 562 mm
Weight (Net) 13.73 kg
Weight (Gross) 16 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2), 100-240V
Power Consumption: Operating Mode, Typical 106.66 W
Tested with drives fully populated.
Fan System fan: 2 x 70mm, 12VDC
Sound Level 37.2 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 5000
