TS-h1683XU-RP-E2236-128G

CPU

Intel® Xeon® E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz)

CPU Architecture

64-bit x86

Floating Point Unit

Encryption Engine

 (AES-NI)

System Memory

128 GB UDIMM DDR4 ECC (4 x 32GB)

Maximum Memory

128 GB (4 x 32 GB)

Memory Slot

4 x Long-DIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

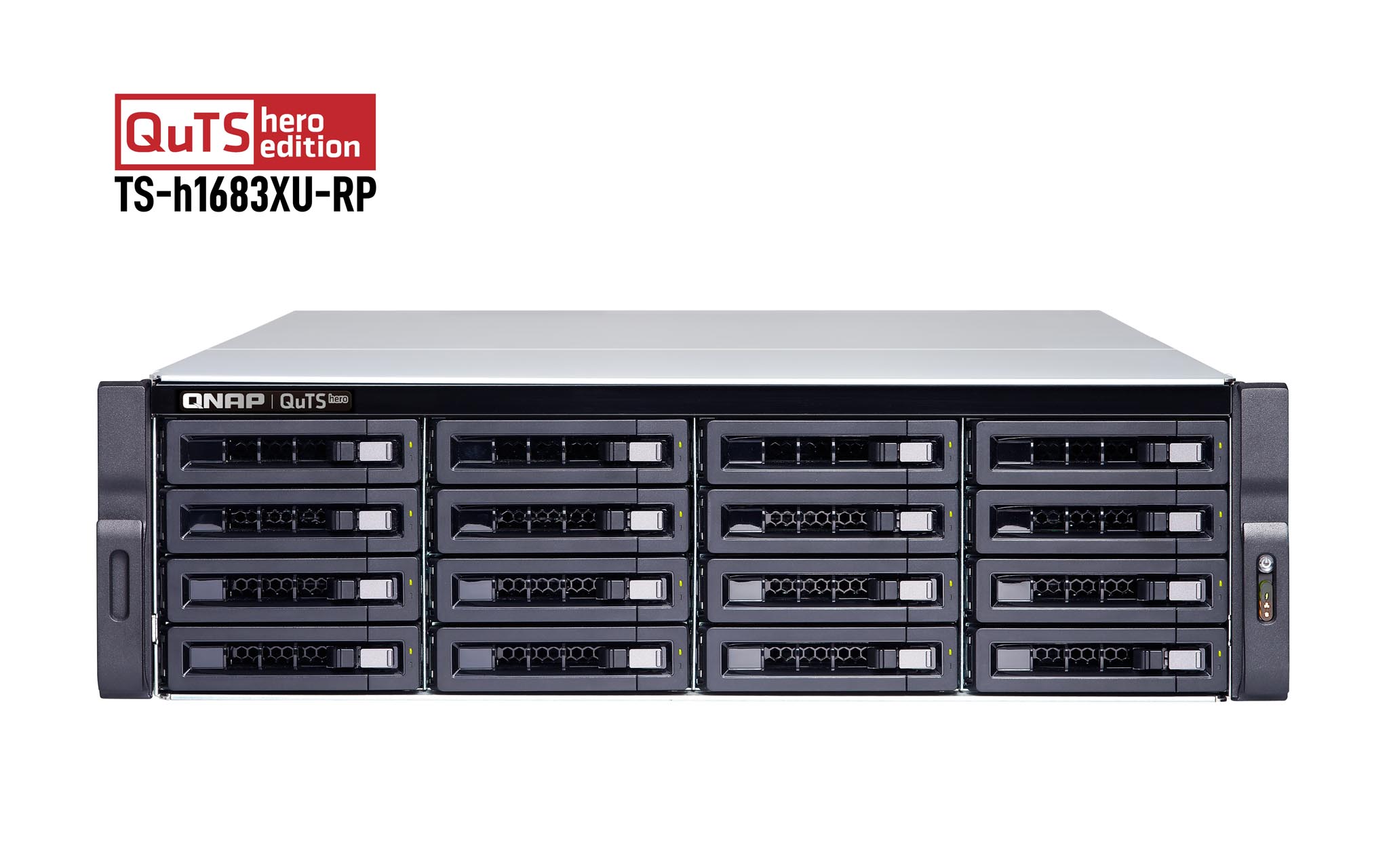

Drive Bay

16 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

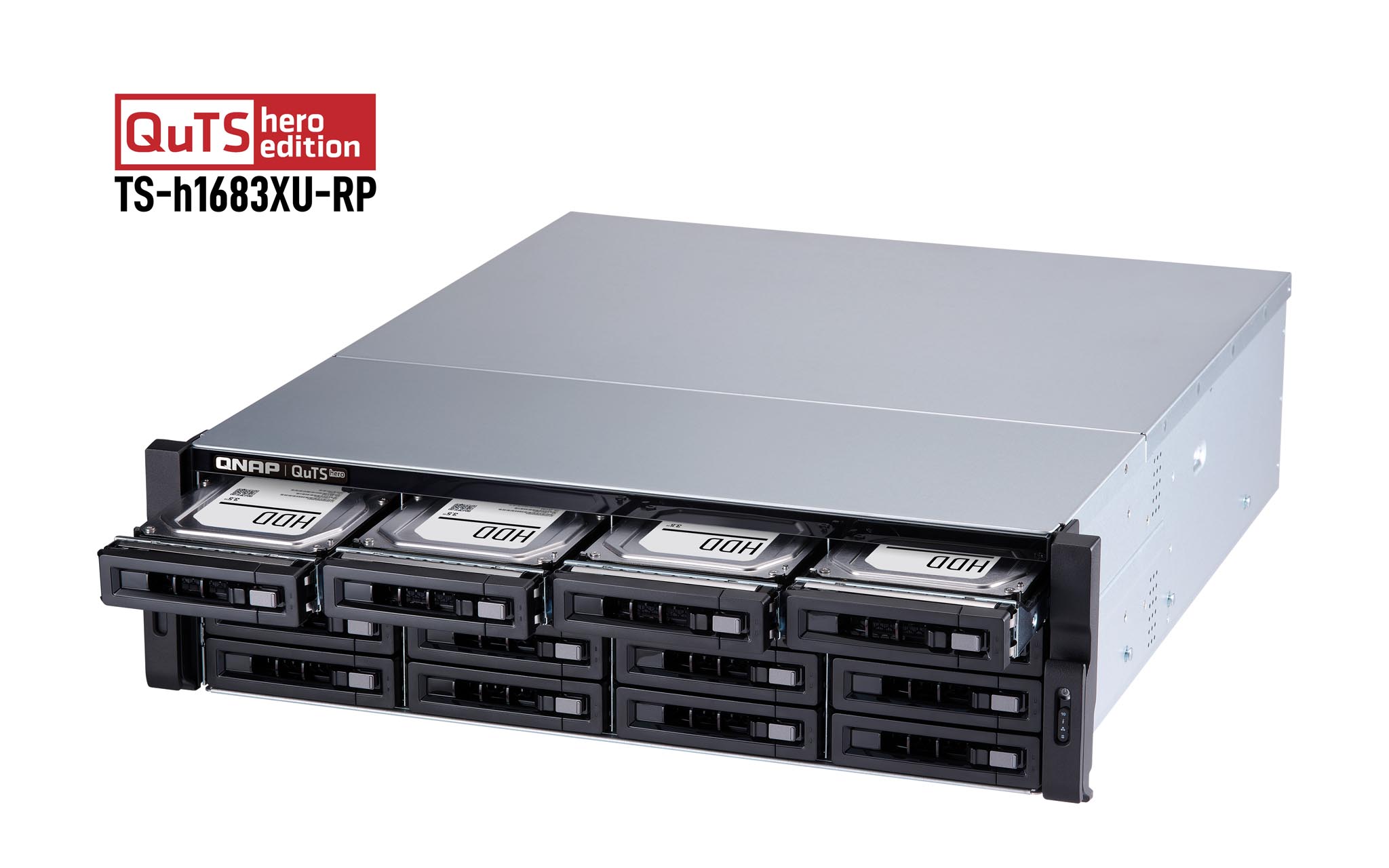

Hot-swappable

SSD Cache Acceleration Support

Gigabit Ethernet Port (RJ45)

4

10 Gigabit Ethernet Port

2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port

Wake on LAN (WOL)

Jumbo Frame

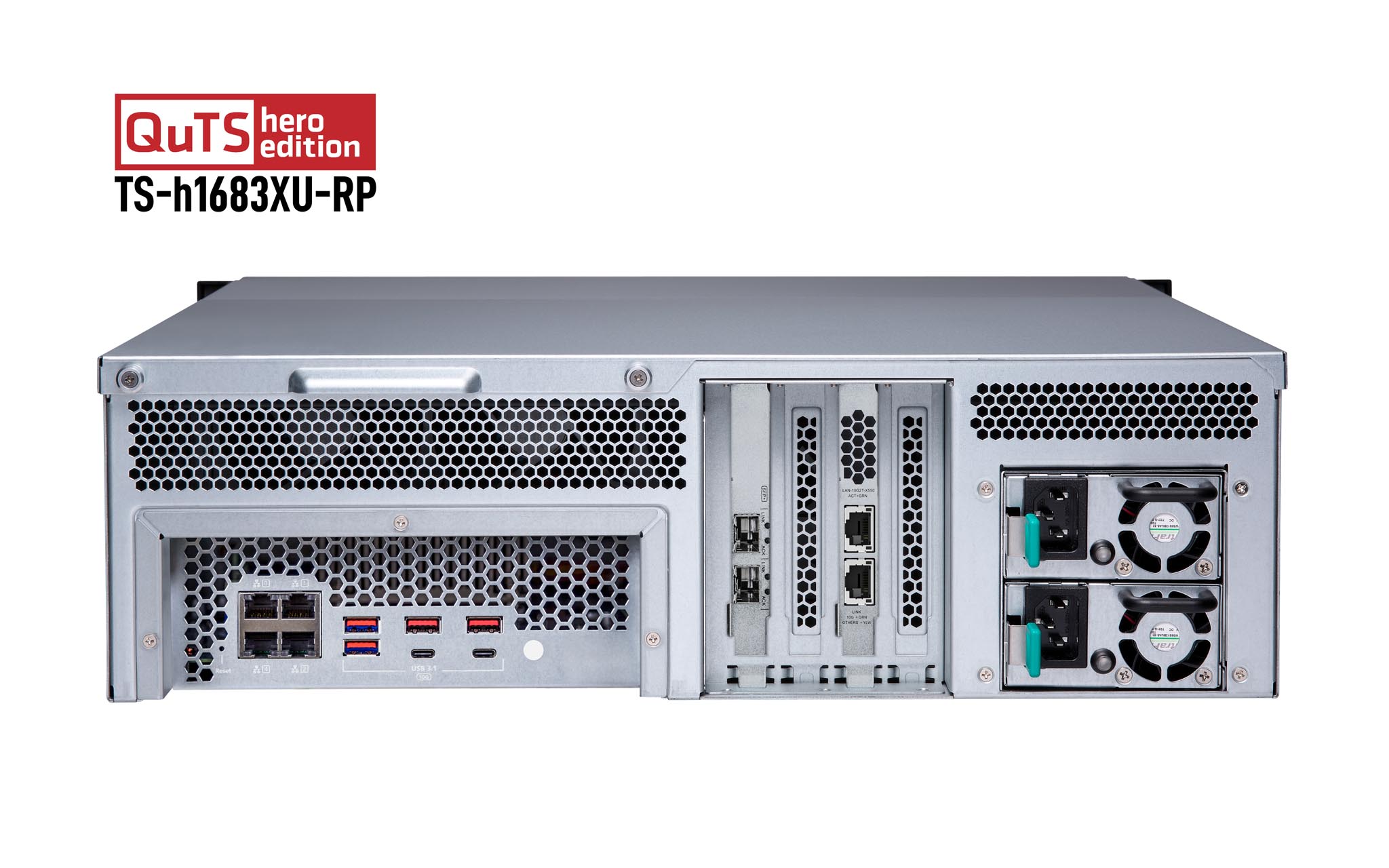

PCIe Slot

4

Slot 1: PCIe Gen 2 x4 (PCH)

Slot 2: PCIe Gen 3 x8 (CPU)

Slot 3: PCIe Gen 3 x4 (CPU)

Slot 4: PCIe Gen 3 x4 (CPU)

Slot 2 and slot 4 are preinstalled with 10GbE network adapters.

USB 3.2 Gen 2 (10Gbps) Port

2 x Type-C USB 3.2 Gen 2 10Gbps

4 x Type-A USB 3.2 Gen 2 10Gbps

Form Factor

3U Rackmount

LED Indicators

HDD 1-16, Status, LAN, storage expansion port status

Buttons

Power, Reset

Dimensions (HxWxD)

130 × 481 × 573.5 mm

Weight (Net)

13.76 kg

Weight (Gross)

21.79 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

500W(x2), 100-240V

Power Consumption: Operating Mode, Typical

130.43 W

Tested with drives fully populated.

Fan

System fan: 4 x 92mm, 12VDC

Sound Level

53 db(A)

System Warning

Buzzer
