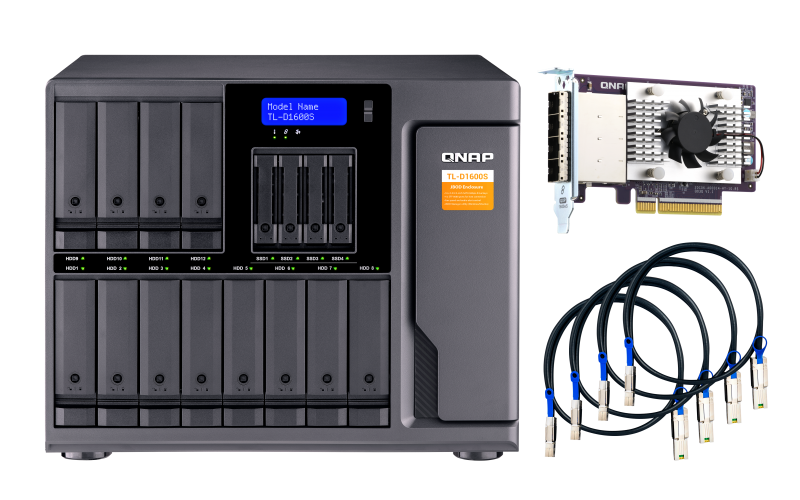

16-bay desktop SATA JBOD expansion unit with a QXP-1600eS PCIe SATA host card and 4 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables. Hàng chính hãng CO-CQ đầy đủ, Cam kết giá tốt nhất thị trường!
THÔNG SỐ KỸ THUẬT QNAP TL-D1600S
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Audio Alert On/Off Switch | |
| Form Factor | Tower |
| Host Interface | 4 x SFF-8088 |
| LED Indicators | HDD 1-16, Status, Link, Fan error |
| LCD Display/ Button | |
| Buttons | Power switch |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
| Weight (Net) | 11.59 kg |
| Max. number of HDDs/SSDs supported | 16 |
| Hard Drive Type | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives (for 3.5-inch tray slots only) 2.5-inch SATA solid state drives |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 93.66 W
Tested with drives fully populated.
|
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 3 x 92mm, 12VDC |
| Sound Level | 25 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot |
