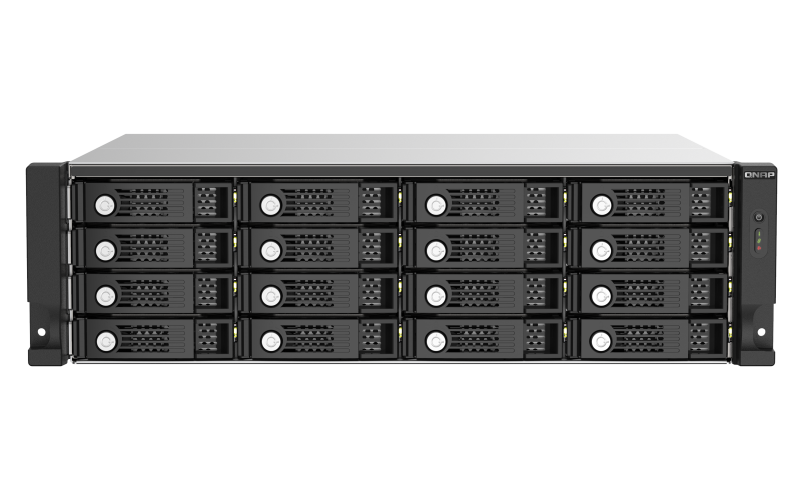

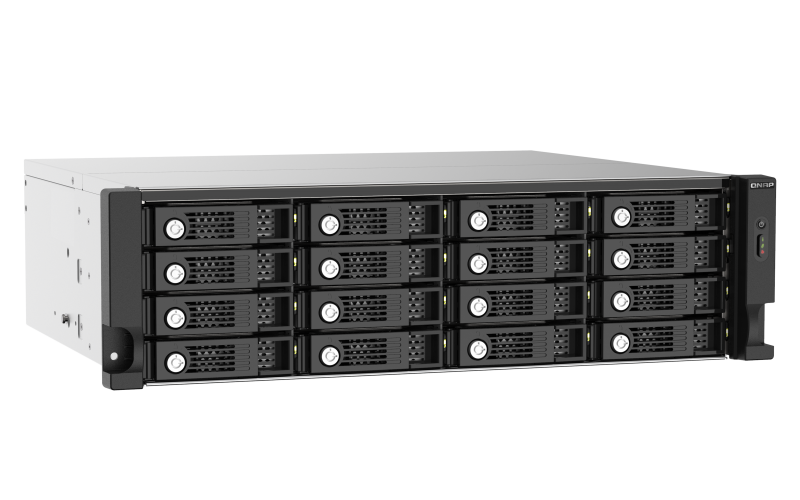

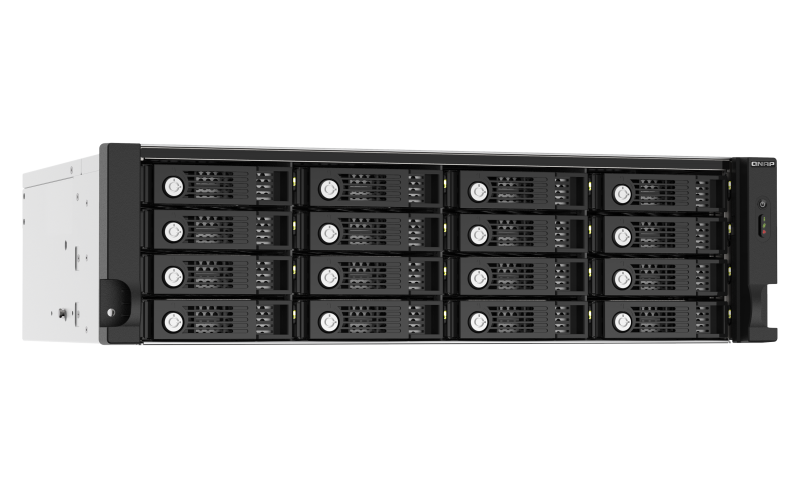

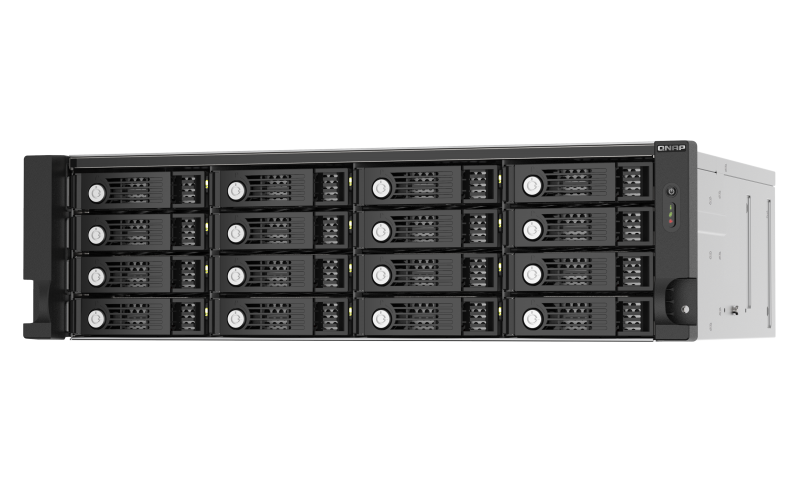

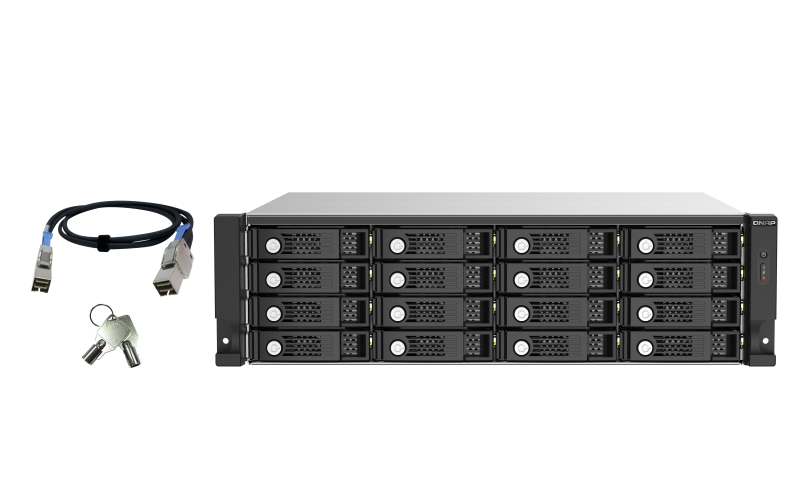

Thiết bị lưu trữ mở rộng QNAP TL-R1620Sep-RP 16-bay 3U rackmount SAS 12Gbps JBOD expansion enclosure with SAS expander, 2.5"/3.5" SAS 12Gbps & SAS/SATA 6Gbps drives, 4 x SFF-8644 Mini-SAS HD ports, redundant PSU, without rail kit. Hàng chính hãng CO-CQ đầy đủ, Cam kết giá tốt nhất thị trường!
THÔNG SỐ KỸ THUẬT QNAP TL-R1620Sep-RP
| Drive Bay | 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SAS/SATA hard disk drives 2.5-inch SAS/SATA hard disk drives 2.5-inch SAS/SATA solid state drives |
| Hot-swappable | |
| Form Factor | 3U Rackmount |
| Host Interface | 4 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) |
| LED Indicators | Front panel: HDD 1-16, Power, Status, Link, Fan error Rear panel: SAS connector, Enclosure ID |
| Buttons | Power |
| Dimensions (HxWxD) | 131.3 × 482.2 × 425.3 mm |
| Weight (Net) | 11.48 kg |
| Weight (Gross) | 16.01 kg |
| Max. number of HDDs/SSDs supported | 16 |
| Hard Drive Type | 3.5" or 2.5" SAS 12Gb/s, SAS/SATA 6Gb/s and 3Gb/s drives |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 207.13 W
Tested with drives fully populated.
|
| Fan | 3 x 80mm, 12VDC |
| Sound Level | 36 db(A) |
| System Warning | Buzzer |
| Management | Managed via QNAP QTS / QuTS hero OS 1. Supports disk S.M.A.R.T. information 2. RAID expansion enclosure identifier 3. Locate RAID expansion enclosures 4. Locate hard disks on RAID expansion enclosure 5. Smart fan control by detecting system and hard drive temperature 6. In-band SAS firmware update |
