QNAP TVS-873e-8G

QNAP TVS-873e-8G

A powerful business NAS with an AMD RX-421BD quad-core APU, up to 64GB DDR4 RAM, and supports dual PCIe slots, USB QuickAccess and HDMI 4K output. Hàng chính hãng CO-CQ đầy đủ, Cam kết giá tốt nhất thị trường!

Call đ

QNAP TVS-873e-8G

Thông só kỹ thuật TVS-873e-8G

CPU AMD R-Series RX-421BD quad-core 2.1 GHz processor (Turbo Core to 3.4 GHz)
CPU Architecture 64-bit x86
Graphic Processors Embedded Radeon™ R7 Graphics Processor
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB SO-DIMM DDR4 (2 x 4 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x SO-DIMM DDR4
For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

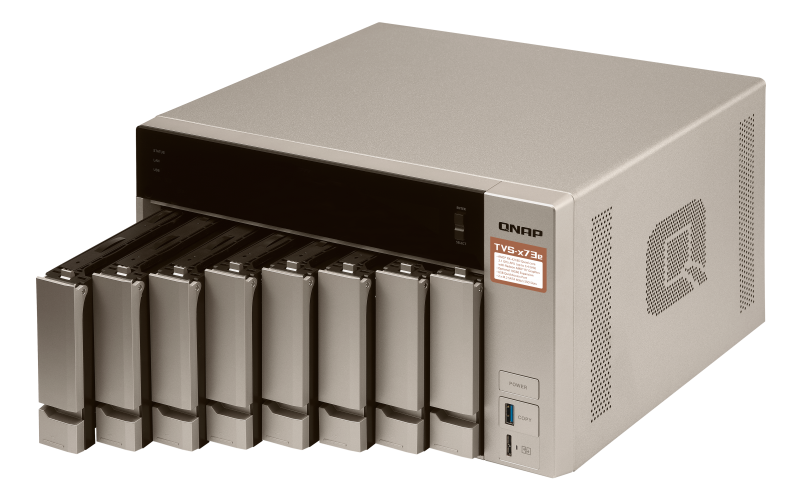

Hot-swappable
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 SSD Slot 2 x M.2 2280/2260 SATA 6Gb/s slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 4
Expandable with an optional PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 1 port 4
USB 3.2 Gen 2 (10Gbps) Port Optional via a PCIe adapter
USB QuickAccess 1 x USB 3.2 Gen 1 Micro-B
IR Sensor  (QNAP RM-IR004)
HDMI Output 2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
Audio Input 2 x 3.5 mm dynamic microphone jacks
Audio Output 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line-out jack simultaneously.
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
LCD Display/ Button
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 188.2 × 329.3 × 279.6 mm
Weight (Net) 6.56 kg
Weight (Gross) 8.4 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 36.43 W
Power Consumption: Operating Mode, Typical 70.26 W
Tested fully populated with 2TB hard drives.
Fan System fan: 2 x 120mm
CPU fan: 1 x 60mm
Sound Level 23.4 db(A)
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1200
