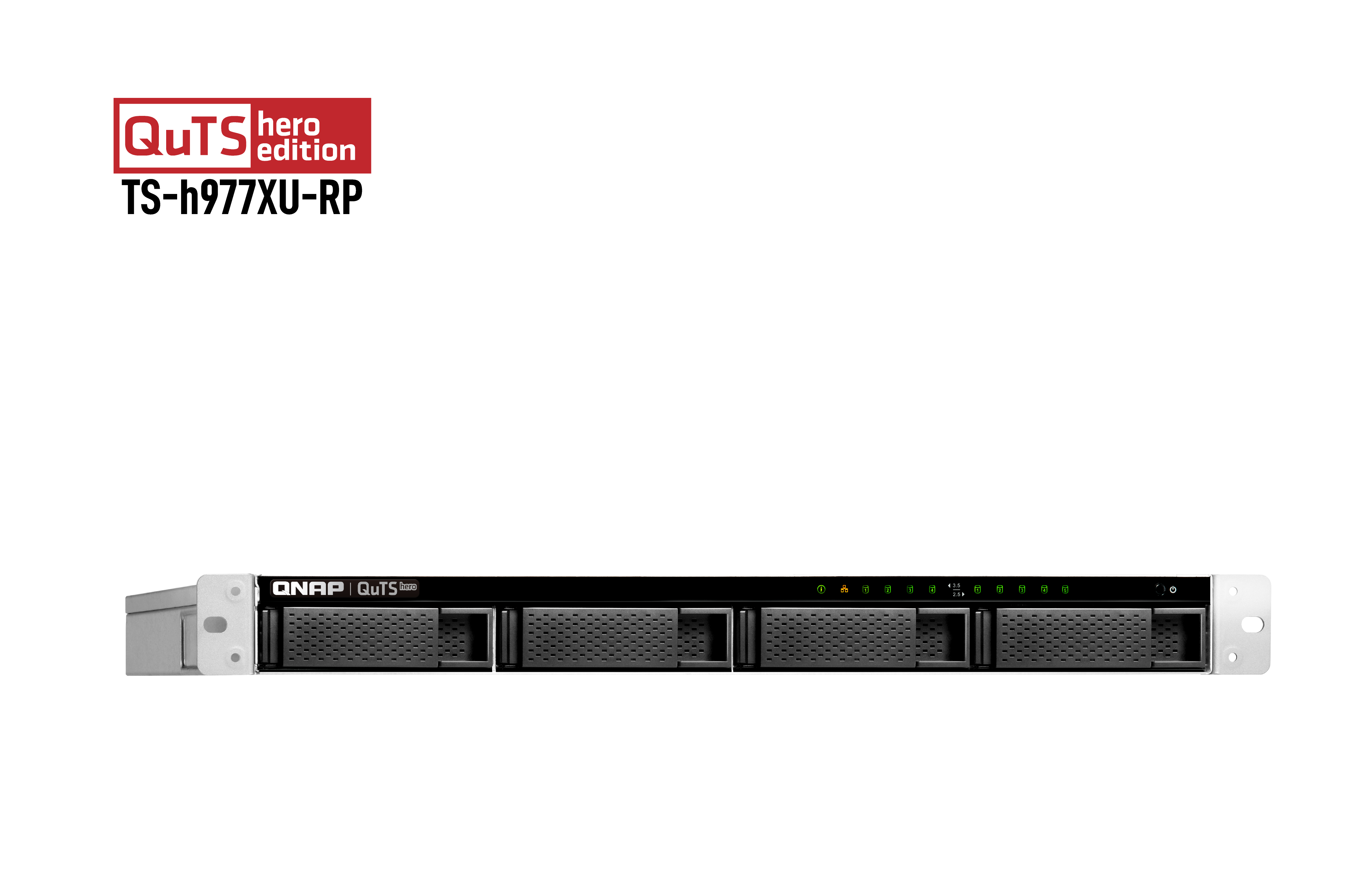

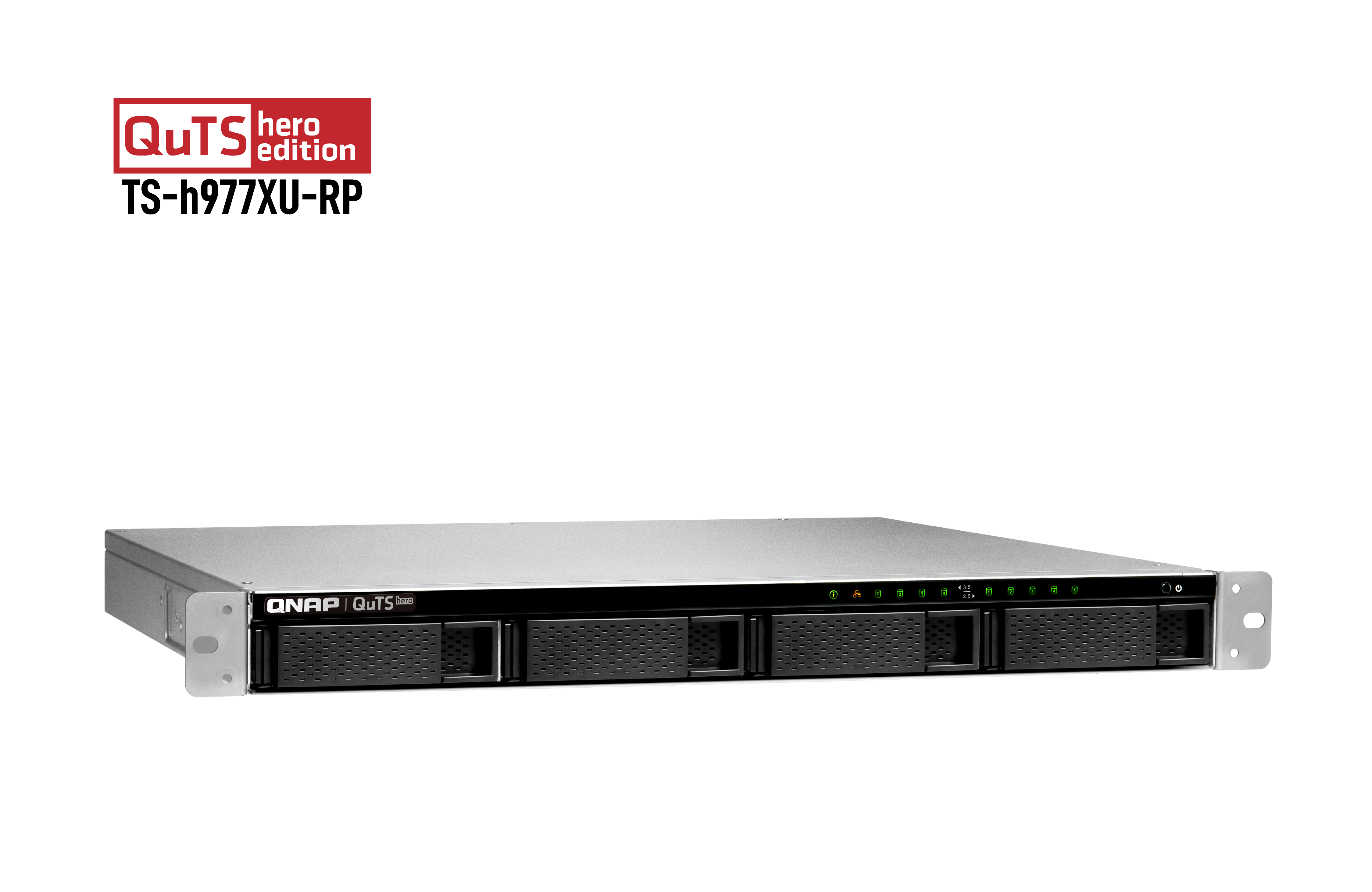

TS-h2477XU-RP: Bộ lưu trữ ZFS có độ tin cậy cao với bộ xử lý AMD Ryzen™, kết nối 10GbE và khả năng mở rộng PCIe (Hỗ trợ QuTS Hero hoặc QTS). Hàng chính hãng CO-CQ đầy đủ, Cam kết giá tốt nhất thị trường!
Thông số kỹ thuật:
| CPU | AMD Ryzen™ 7 3700X 8-core/16-thread 3.6 GHz processor, Turbo Core 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| System Memory | 32 GB UDIMM DDR4 (2 x 16GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x Long-DIMM DDR4 |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch + 5 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x16 PCIe slot is preinstalled with a 10GbE network adapter
|
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-9, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 482.6 × 505.54 mm |
| Weight (Net) | 8.62 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 76.43 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 40mm, 12VDC |
| Sound Level | 43.8 db(A) |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
