TS-431P2-1G

CPU

AnnapurnaLabs Alpine AL314 32-bit ARM® Cortex-A15 quad-core 1.7GHz processor

CPU Architecture

32-bit ARM

Floating Point Unit

ü

Encryption Engine

ü

System Memory

1 GB SODIMM DDR3L RAM

Maximum Memory

8 GB (1 x 8GB)

Memory Slot

1 x SO-DIMM DDR3L/DDR3

Flash Memory

512 MB (Dual boot OS protection)

Drive Bay

4 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

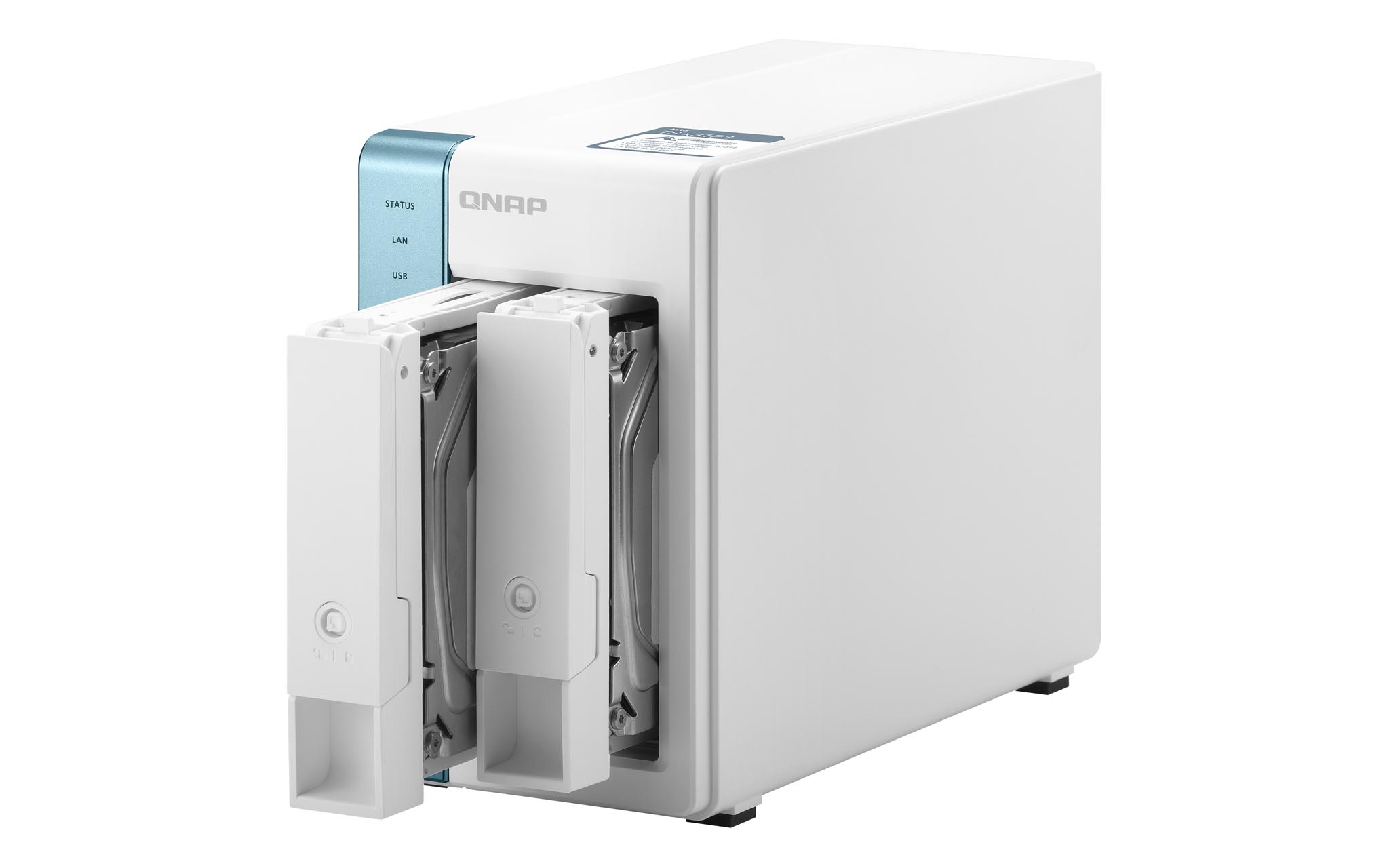

Hot-swappable

ü

SSD Cache Acceleration Support

ü

Gigabit Ethernet Port (RJ45)

2

Wake on LAN (WOL)

ü

Jumbo Frame

ü

USB 3.2 Gen 1 port

3

Form Factor

Tower

LED Indicators

Power, Status, LAN, USB, HDD1-4

Buttons

Power, Reset, USB Auto Copy

Dimensions (HxWxD)

169 × 160 × 219 mm

Weight (Net)

2.01 kg

Weight (Gross)

3.5 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

External Power Adapter,90W, 100-240V

Power Consumption: HDD Sleep Mode

10.62 W

Power Consumption: Operating Mode, Typical

23.72 W

Tested with drives fully populated.

Fan

1 x 120mm, 12VDC

Sound Level

19.5 db(A)

System Warning

Buzzer

Kensington Security Slot

ü
