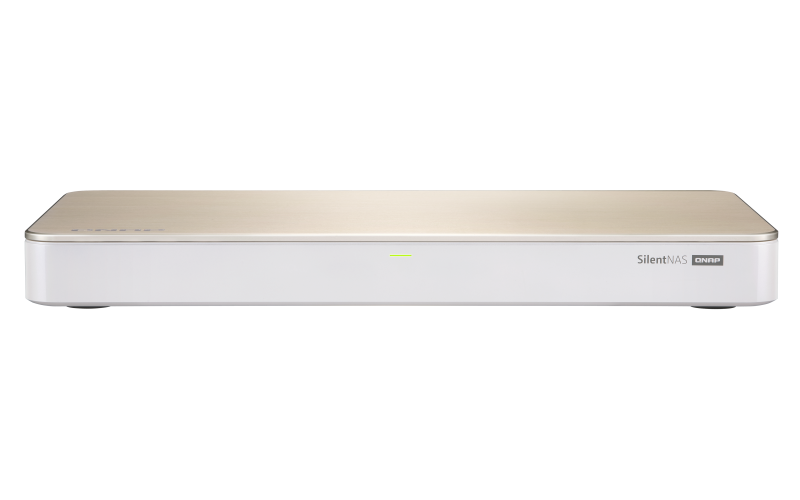

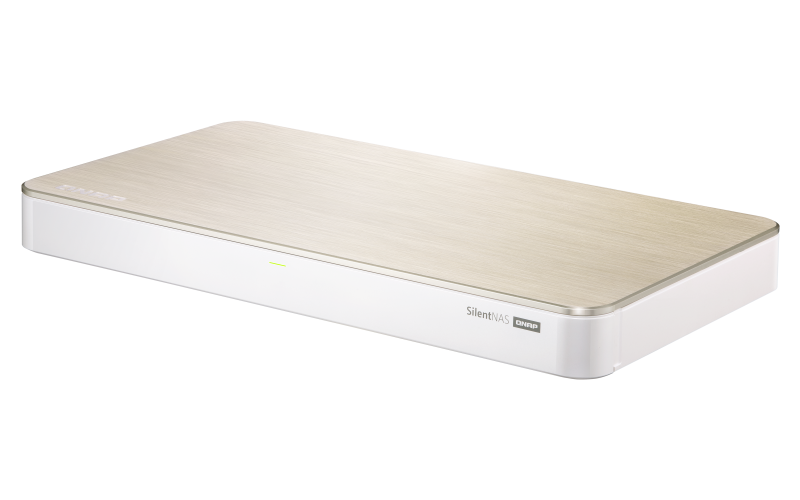

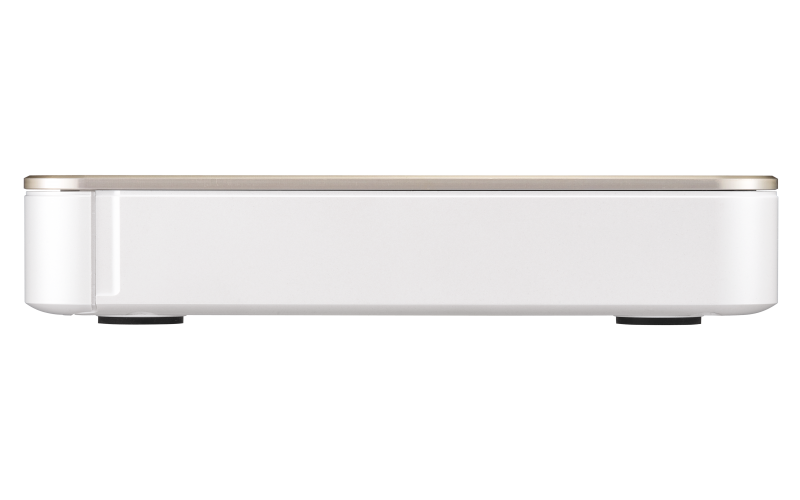

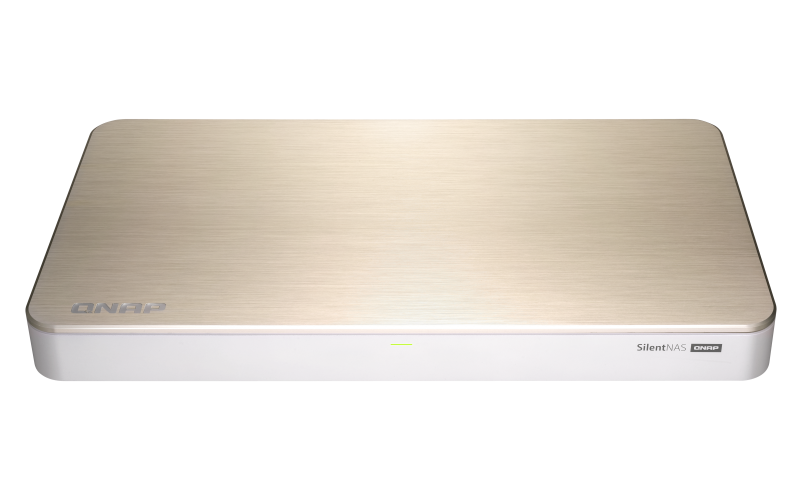

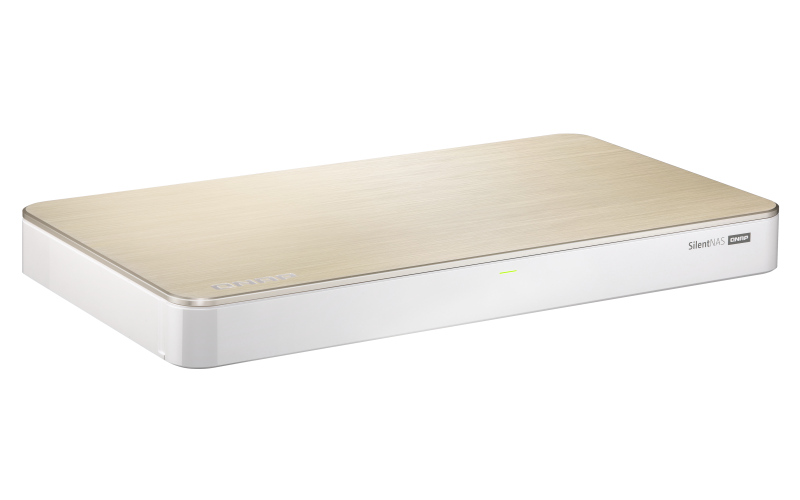

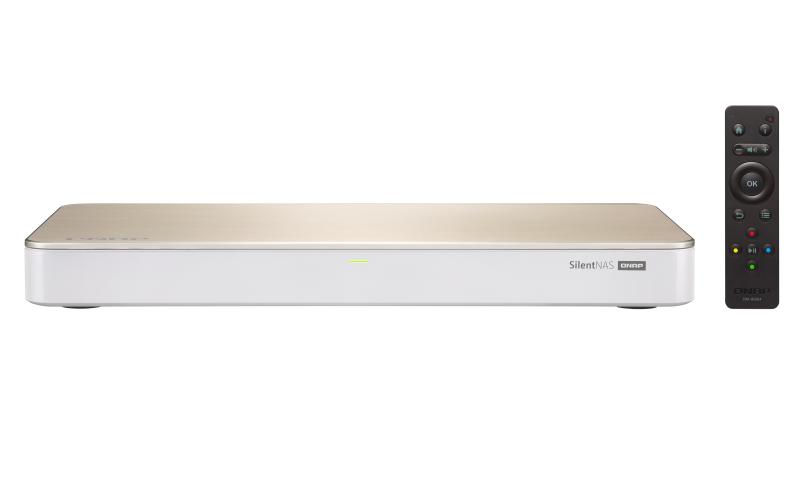

HS-453DX-8G là NAS yên tĩnh nhưng đầy mạnh mẽ. NAS đa phương tiện không quạt với cấu trúc Hybrid Storage, kết nối 10GbE và đầu ra HDMI 2.0 4K. Hàng chính hãng CO-CQ đầy đủ, Cam kết giá tốt nhất thị trường!
Thông số kỹ thuật
| CPU | Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 600 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 8 GB SO-DIMM DDR4 (2 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical RAM modules.
|
| Flash Memory | 4GB (Dual boot OS protection) |

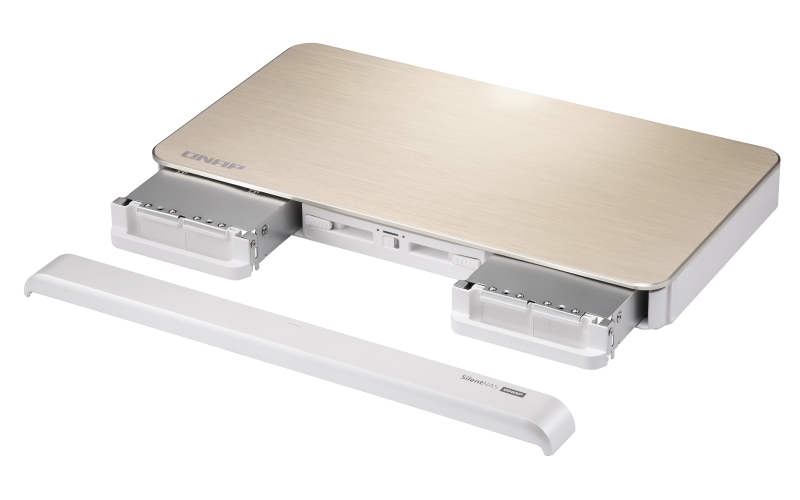

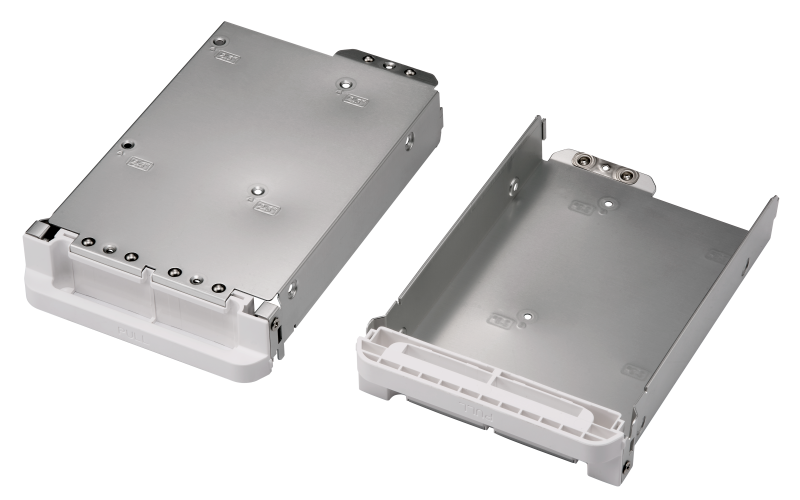

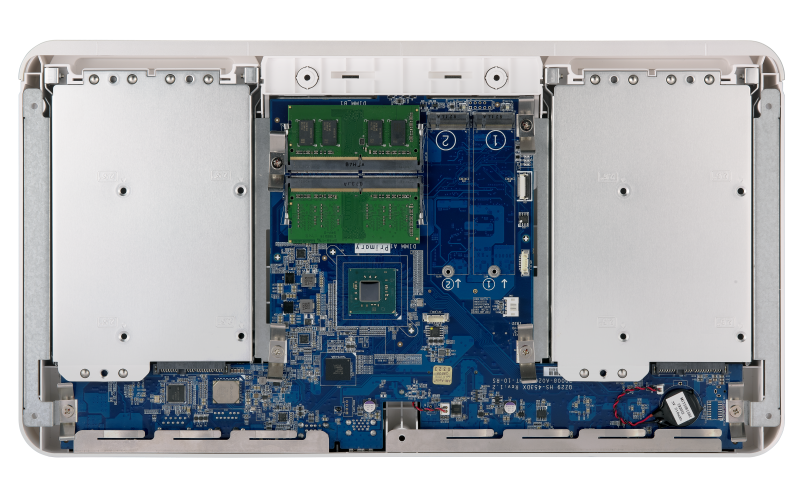

| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 SATA 6Gb/s slots |
| SSD Cache Acceleration Support | |

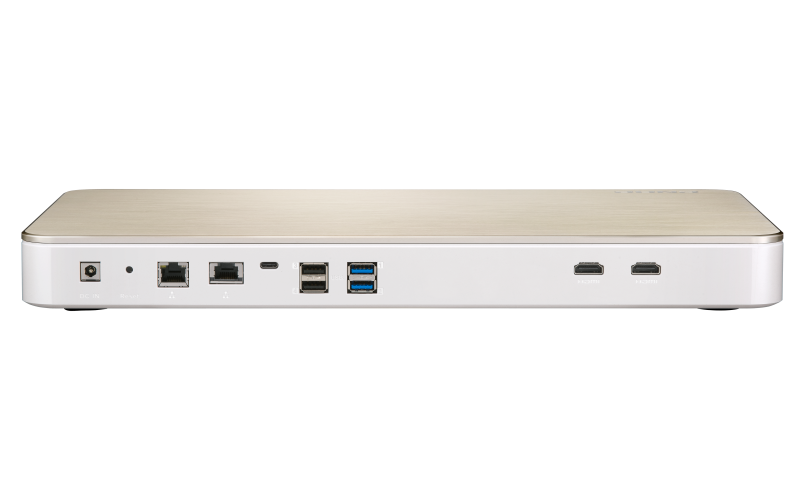

| Gigabit Ethernet Port (RJ45) | 1 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 3 (1 x USB-C, 2 x USB-A) |
| IR Sensor | (RM-IR004) |
| HDMI Output | 2, HDMI 2.0 (up to resolution 3840 x 2160 @ 60Hz) + HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Audio Input | - (No longer available on units manufactured on or after 2021/1/1) |
| Audio Output | - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
| Form Factor | Set-top design |
| LED Indicators | Power/Status, HDD1-2 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.8 × 404 × 220 mm |
| Weight (Net) | 2.4 kg |
| Weight (Gross) | 3.87 kg |
| Operating temperature | 0 - 35 °C (32°F - 95°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External Power Adapter, 90W, 100-240V |
| Power Consumption: HDD Sleep Mode | 13.55 W |
| Power Consumption: Operating Mode, Typical | 22.38 W
Tested with drives fully populated.
|
| Sound Level | 6.2 db(A) |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
