TS-351-4G

CPU

Intel® Celeron® J1800 dual-core 2.41 GHz processor (burst up to 2.58 GHz)

CPU Architecture

64-bit x86

Graphic Processors

Intel® HD Graphics

Floating Point Unit

ü

Hardware-accelerated Transcoding

, up to 1080P

System Memory

4 GB SODIMM DDR3L (1 x 4 GB)

Maximum Memory

8 GB (2 x 4 GB)

Memory Slot

2 x SO-DIMM DDR3L

When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.

Flash Memory

512MB (Dual boot OS protection)

Drive Bay

3 x 3.5-inch SATA 6Gb/s, 3Gb/s

Bay 1, 2: SATA 3Gbps

Bay 3: SATA 6Gbps

Drive Compatibility

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

An optional 2.5" drive tray base (TRAY-25-NK-BLK03) is needed to install a 2.5" SSD/HDD

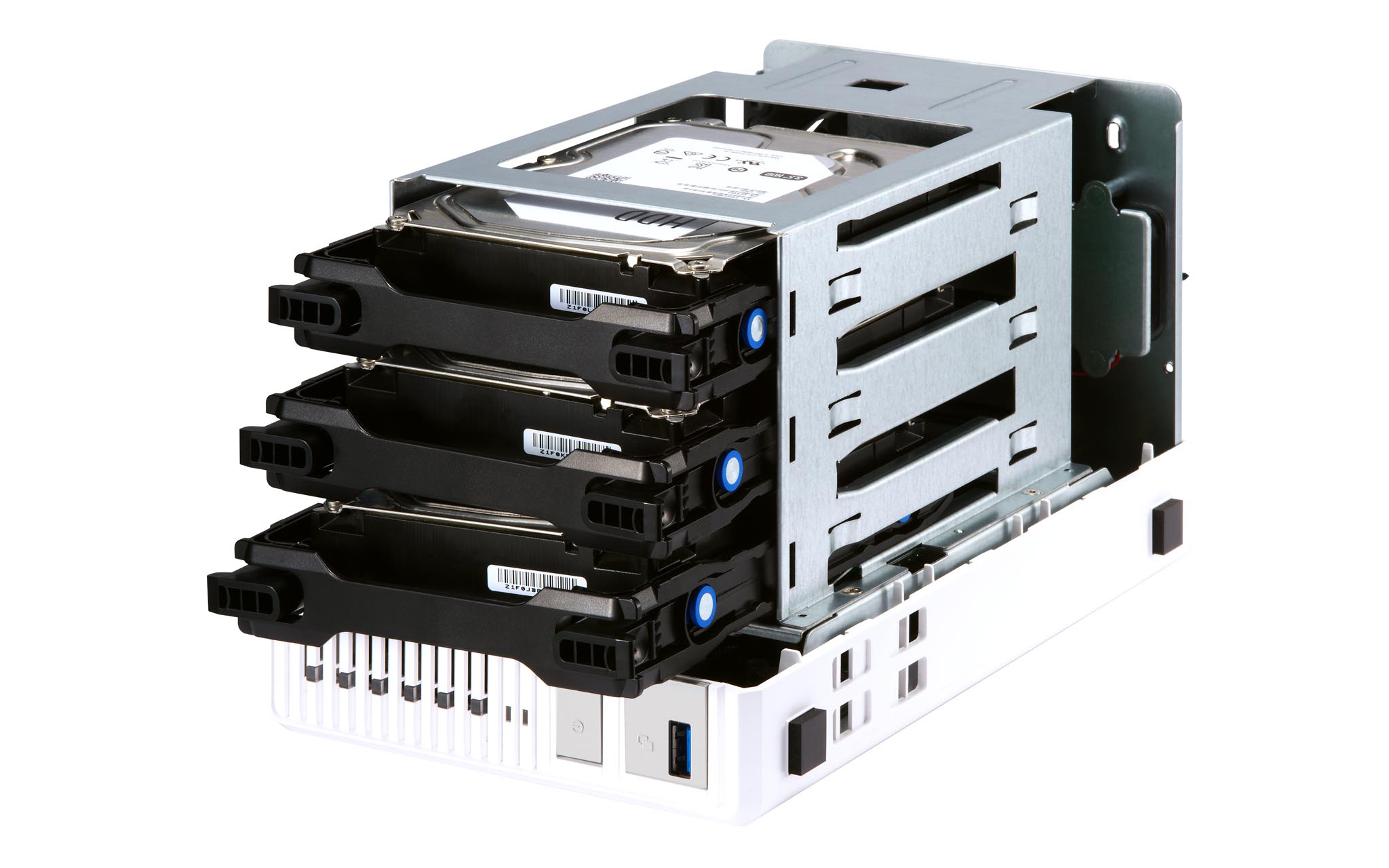

Hot-swappable

ü

M.2 SSD Slot

2 x M.2 2280 NVMe 500 MB/s slots

SSD Cache Acceleration Support

Drive bay 3

M.2 Slots 1 to 2

Gigabit Ethernet Port (RJ45)

1

Wake on LAN (WOL)

ü

Jumbo Frame

ü

USB 2.0 port

2

USB 3.2 Gen 1 port

1

HDMI Output

1, HDMI 1.4a (up to 1080p)

Audio Output

1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)

Form Factor

Tower

LED Indicators

System Status, LAN, USB, HDD1~3, M.2 SSD1~2

Buttons

Power, Reset, USB Copy

Dimensions (HxWxD)

142 × 150 × 260.1 mm

Weight (Net)

1.64 kg

Weight (Gross)

2.69 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

65W adapter, 100 - 240V

Power Consumption: HDD Sleep Mode

18.56 W

Power Consumption: Operating Mode, Typical

26.22 W

Tested with drives fully populated.

Fan

1 x 90mm, 12VDC

Sound Level

21.8 db(A)

System Warning

Voice prompts or Buzzer

Kensington Security Slot

ü
